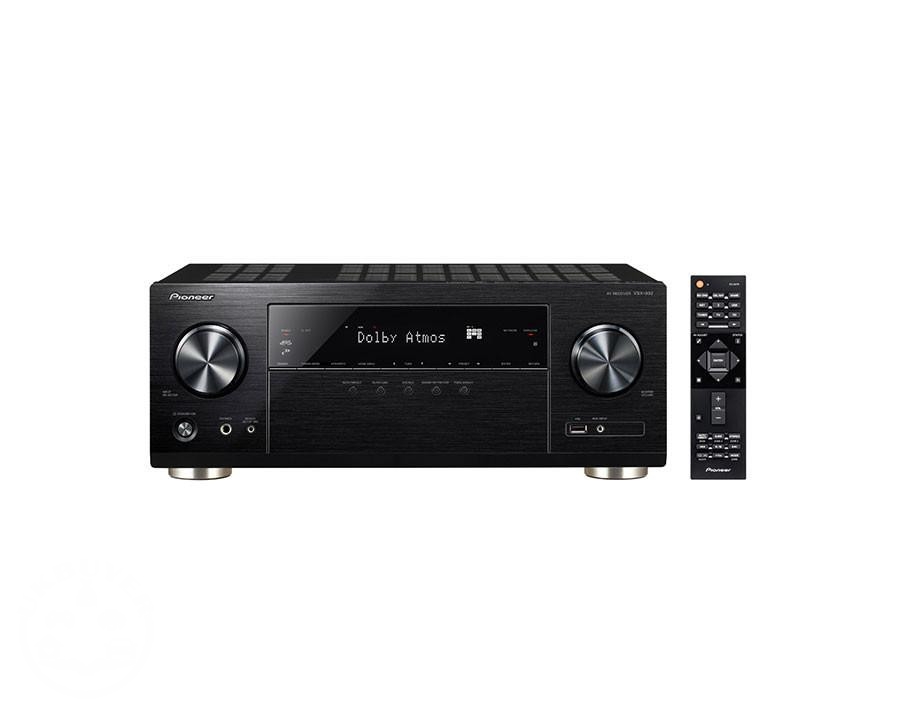

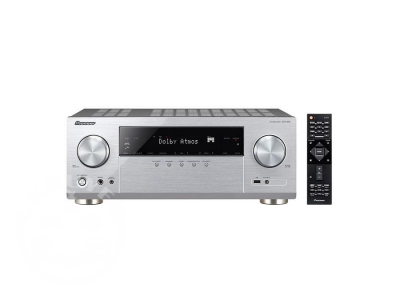

PIONEER VSX-932 AV RECEIVER

7.1-channel receiver with 7x130 watts, full-range streaming, Dolby Atmos and dts:X, 4K Ultra HD, video scaler, 4 HDMI ports, HDCP 2.2, high resolution audio playback, dual-band WiFi & Bluetooth.

The new entry-level member of the seven-channel class

A receiver that can competently power a complete Dolby Atmos speaker set with front, centre, surround and height speakers as well as two independent subwoofers no longer has to cost a small fortune: the VSX-932 has all required decoders and seven powerful output stages with Pioneer’s exclusive “Direct Energy” technology that minimizes electricity consumption and waste heat. Thanks to the “Reflex Optimizer”, it is able to produce a convincing sound experience with a spacious, all-encompassing atmosphere and precise three-dimensionally placed effects, even with the use of indirect projecting Atmos-enabled speakers. In keeping with its comprehensive surround capabilities, the VSX-932 is also equipped with the latest video technology: its four HDMI inputs support 4K/4:4:4/60p/24-bit with the HDR10, Dolby Vision and BT.2020 colour space and dynamics extensions.

High-resolution streaming is supported as well: high resolution and DSD support is complemented by the integrated streaming services Tidal, Spotify, Deezer and TuneIn Internet radio. And by WiFi, AirPlay, Bluetooth and, after a future firmware update, integrated Chromecast technology and PlayFi. Since the living room is not the only place for music enjoyment, the VSX-932 with FireConnect can become the centre of a multi-room network that covers the entire house. Suitable multi-room speakers are available from Pioneer and other manufacturers – because FireConnect is a non-proprietary standard and therefore an excellent fit for Pioneer’s policy to consistently offer the best entertainment with maximum freedom in all respects.


Audio Features

Channels: 7
Amplification Type: Direct Energy
130 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
Dolby Atmos ®/ Dolby Surround
DTS:X/DTS Neural:X
Reflex Optimizer
Dolby® TrueHD/Dolby Digital Plus
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-ES/DTS-HD Express
DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
Digital Core Engine with Cirrus Logic (Quad Core) x1
384 kHz/32-bit DAC (AK4438)
HDMI Audio Return Channel (ARC)
MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
AM/FM Tuner 40 Presets
Video Features

    HDMI 8 in/2 out (selectable for MAIN ZONE/HDZONE)
    3D Ready (Blu-ray Disc®, Broadcast, and Games)
    Deep Colour (36-bit), "x.v. Colour"
    Ultra HD (4K) Upscaling and Pass Through
    1080p/24 fps Scaler with Qdeo™
    Video Conversion to HDMI
    Triple HD Noise Reduction
    Advanced Video Adjust
    Stream Smoother
    Stream Smoother Link
    Frame Rate Conversion
Network Features

    Whole Home Audio with FireConnect*
    Chromecast built-in*
    DTS Play-Fi* Ready
    Apple AirPlay Certified
    Spotify®, TIDAL, Deezer, and Pandora Music-Streaming Services Ready
    Internet Radio with TuneIn
    Hi-Res Audio File Playback via USB/Network
Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
5.6/2.8 MHz DSD Playback (except via Wireless LAN)
Dolby® TrueHD Playback (via USB only)
Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
* Available with future firmware update

Operating Features

iPod Digital Transmission via Front USB Terminal
Android™ Audio/Video Playback with MHL™
AVNavigator for easy wiring and setup with PC, Mac and iPad
HDMI ZONE Out (HDZONE) and Analogue Audio Out (ZONE 2)
Charges iPod/iPhone/iPad
iControlAV2013 Remote Control App (iOS/Android) Ready
AV Receiver and Blu-ray Disc Player Control from Smart Device
Firmware Update via Internet or USB
Graphical User Interface (GUI) with Album Artwork (HDMI only)
Auto Power Down
Power Save for HDMI Standby Through
Sleep Timer
Learning Remote Control (Luminous)
Connections

Front Terminals

HDMI 1 in (assignable, MHL compatible)
USB 1 in for iPod/iPhone/iPad, USB drive
Video (Composite) 1 in for iPod/iPhone/iPad
MCACC Setup MIC in
Phones 1 out
Rear Terminals

HDMI 7 in (7 assignable)
HDMI 2 out (selectable for MAIN ZONE/HDZONE)
Ethernet 1 in
AV (Composite) 3 in
Audio 1 in (assignable)
Digital Coaxial 1 in (assignable)
Digital Optical 1 in (assignable)
Component Video 1 in (assignable)
Monitor Composite 1 out
ZONE 2 Analogue Audio out
Preout 1 SW out
Speaker 9 ch out (FRONT, CENTER, SURROUND, SURROUND BACK/ZONE 2, FH/FW/Speaker B)
Bluetooth Adapter Port for AS-BT200
USB Charge Port for AS-WL300
IR 1 in/1 out
Dimensions & Weight

Dimensions (W x H x D): 435 x 168 x 362.5 mm
Weight: 9.7 kg
